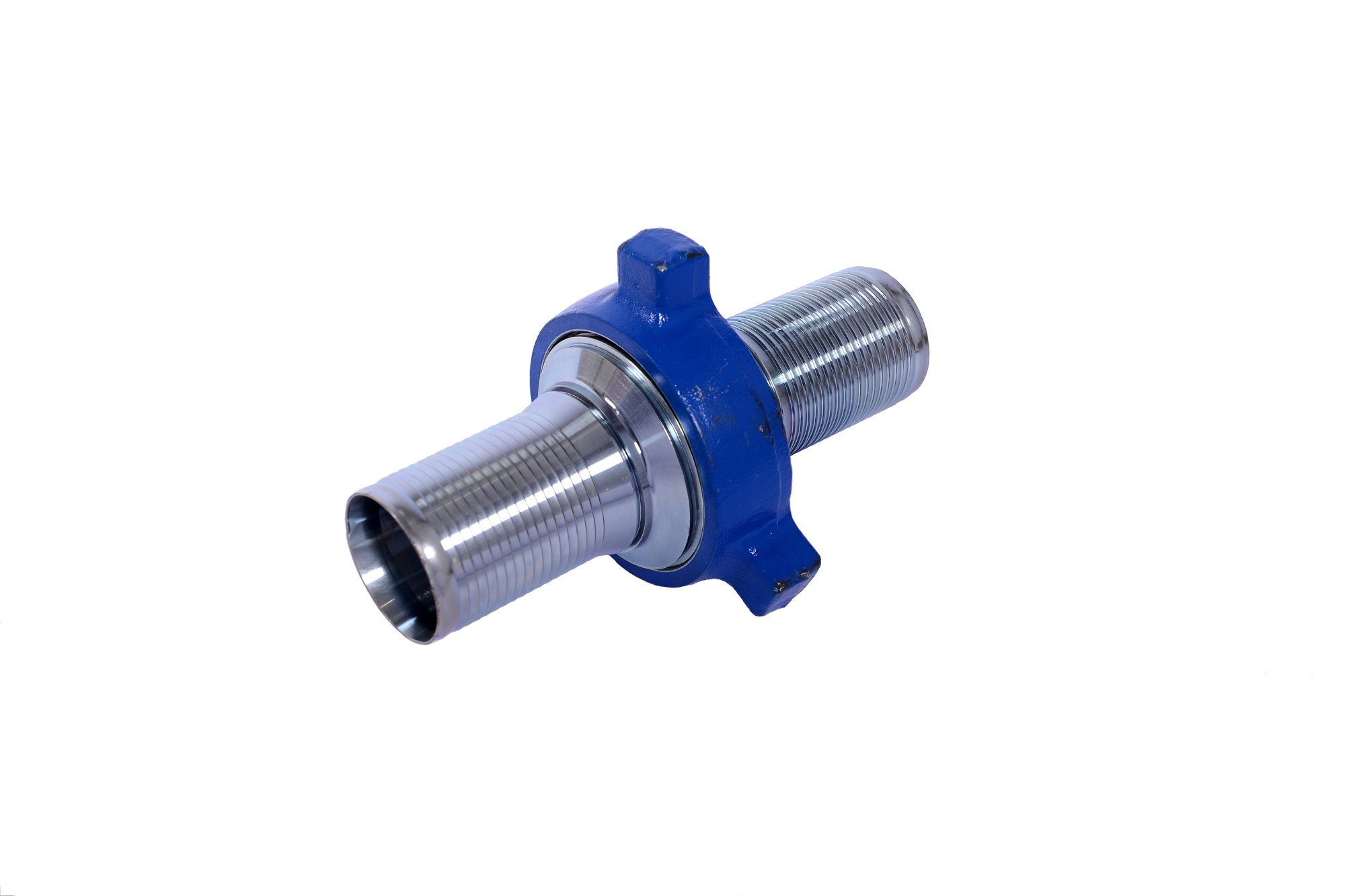

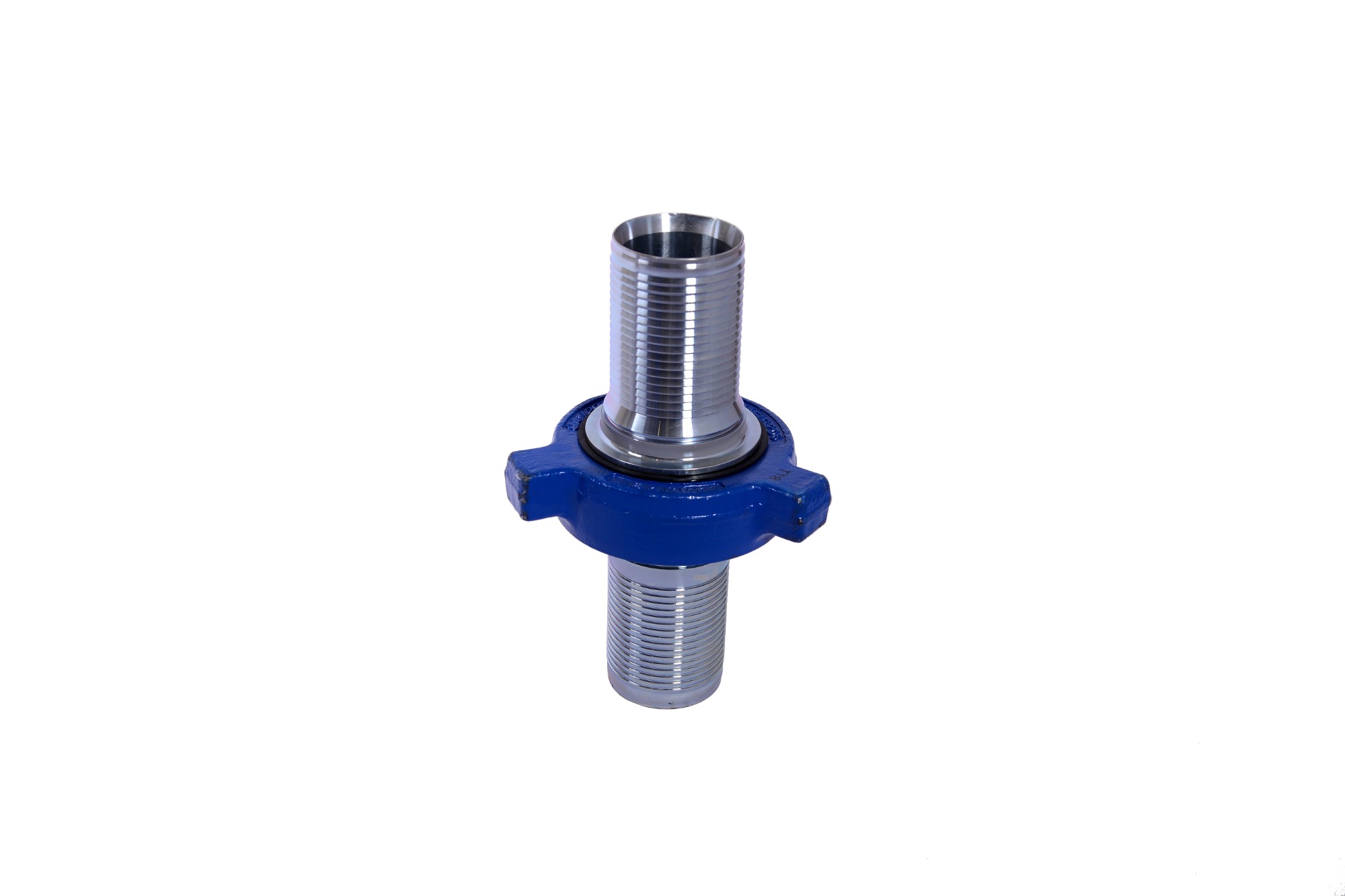

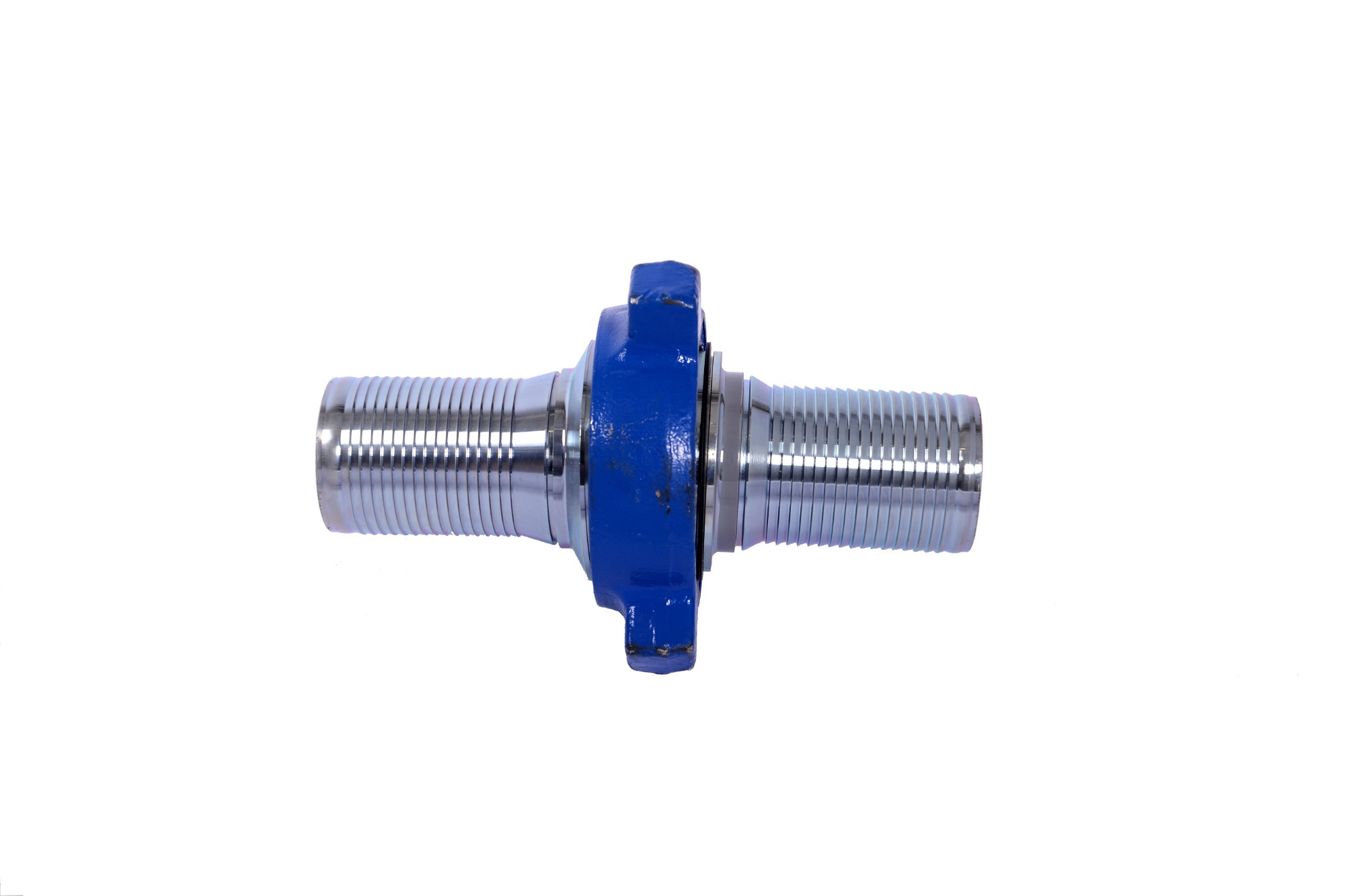

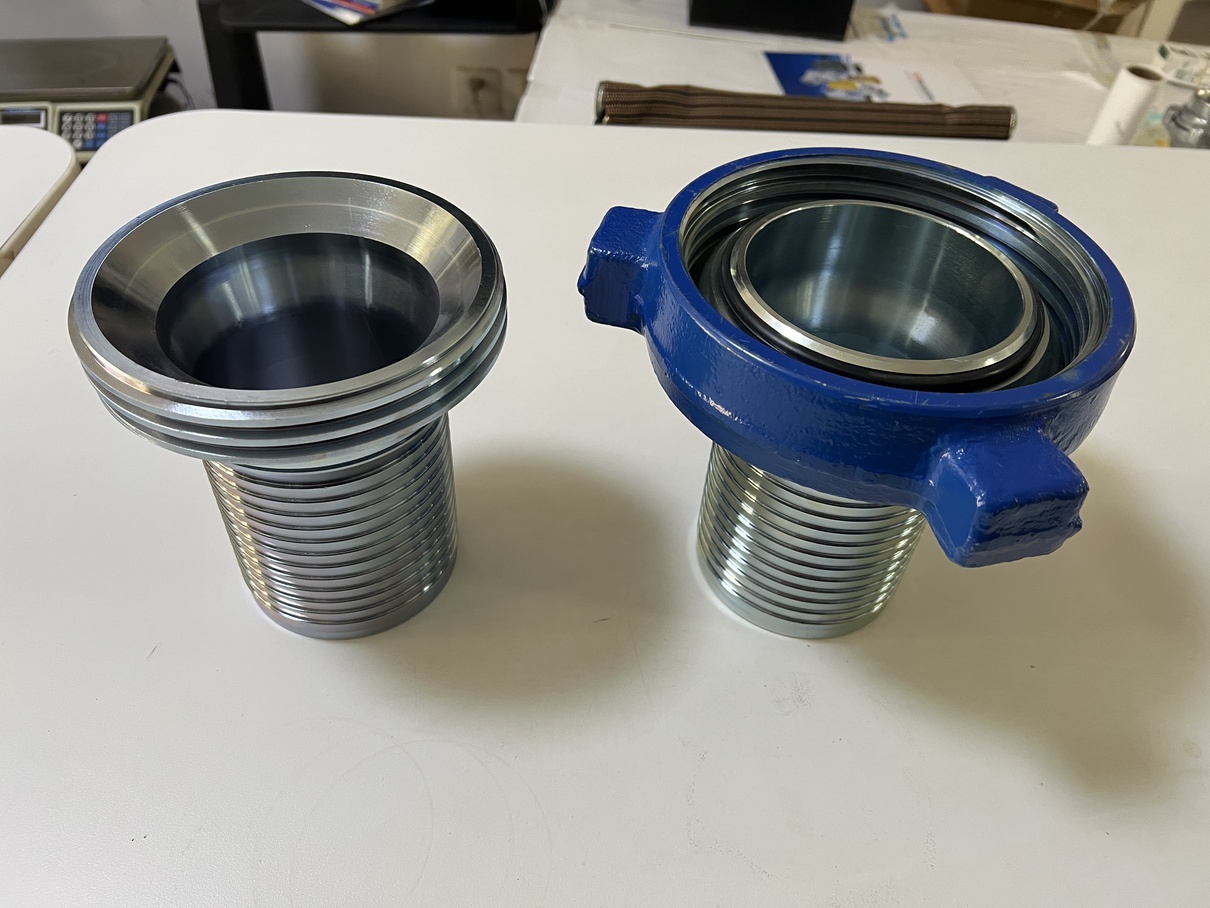

Fig 206 Hammer Union Hose Set

Introduction:

Hammer Union delivers reliable, fast, and secure connections for oil and gas applications. Built to industry standards with metal-to-metal sealing and color-coded markings for quick recognition, these unions offer interchangeability with major brands and proven performance across a wide range of pressures and fluids. But when assemble with the hoses, it need weld the KC nipples at site. The Hammber union hose set solve the problem of this extra work and avoid the leakage rist. Ideal for frac, steam, and various low- to high-pressure service, they combine durability, speed, and field efficiency, make it much popular in these industries.

Material Specification:

· Hammer Union Nut material: ASTM A-105/AISI 1020/20# Steel

· Size:3” and 4”

· Thread: self-locking ACME thread

· Zinc plated machined 20# steel body comply with NACE MR-01-75, API RP-14E.

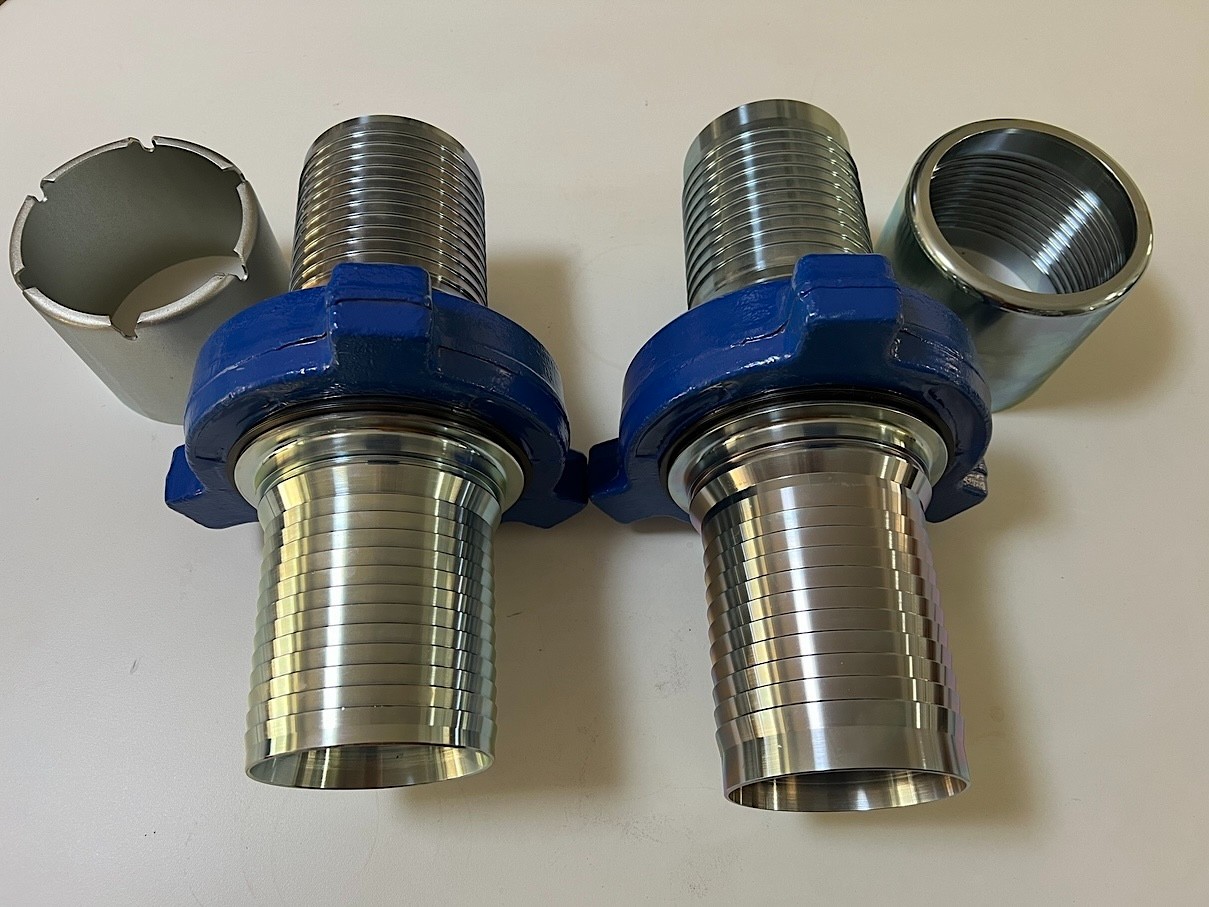

· CWP: 400 PSI rating using six slots crimp ferrules

· CWP: 500 PSI rating using heavy duty crimp sleeves.

· O Ring gasket:NBR

Application and advantages:

· Three-lug nuts with self-locking ACME threads for fast, secure make-up and break-out in the field

· Crimplok integral shank design for reliable medium-pressure service simplified assembly and reduced potential leak paths created with threaded fittings

· Interchangeable with most major hammer union brands, offering flexibility across existing systems

· Ideal for hydraulic fracturing hoses, high-pressure transfer lines, mud and frac services, and other demanding oilfield fluid handling tasks

· Color-coded markings to facilitate quick recognition of sour gas unions and other special service requirements

        For More information, please check the Fig 206 Hammer Union Spec or contact us directly sales@icmhoseind.com
