Camlock Coupling Type B

    Camlock Type B is one type of camlock couplings which are also known as Cam and Groove coupling, quick coupling, which is a reliable quick connect couplings for use on hose, pipe, tubing and tanks conveying a wide variety of liquids, dry bulk materials and vapors including cooling water, fuels, chemicals, cosmetics, food products, adhesives, dyes, pharmaceuticals, pellets and much more media.

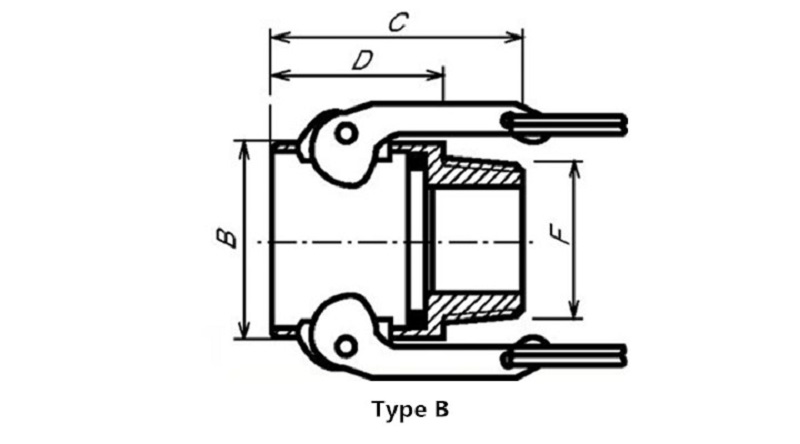

   Camlock Type B, one side is Cam end, to connect camlock coupling with Adaptor side (  A, E, F, DP). The other side is Male thread, can be screwed to hose with male thread or euipment with male thread. Thread avialbe is NPT, BSP, ISO7/1, ISO228.

Camlock couplings advantages:

1) Convenient to connection between hose to hose and hose to equipment:

2) Widely size scope suitalbe various connection, size from 1/2" to 8", 10" and 12" are available on request;

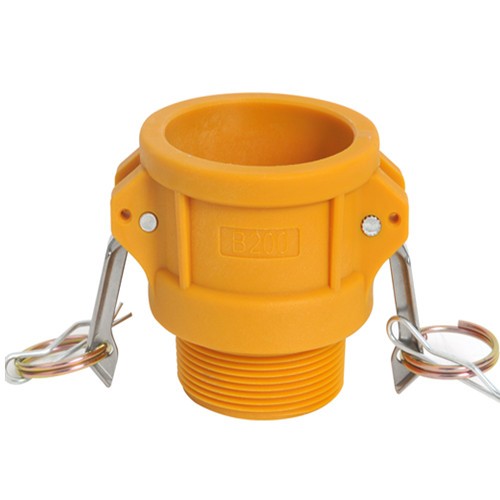

3) Long service life, even at outdoor enviroment, Nylon camlock couplings can keep service for 3 years;

4) Easy to operation and save maintain cost;

5) High leakage-proof;

6) Five different materials suitalbe to various work enviroment.

Appellations: Recommended Industries: Irrigation, Pumping, Hose Distributors, Bulk Tankers, Water Carriers, General Industry

Product description

Pre-sale service:

1.We have stock and could deliver goods within short time.

2.OEM order are accepted, logo printing are available.

3.Good Quality + Factory Price + Quick Response + Reliable Service, is what we are trying best to offer you.

4.All of our products are produced by our professional workman and we have our high-work-effect foreign trade team, you can totally believe our service.

After-sale service:

1.We are very glad that customers give us some suggestion for price and products.

2.If you have any question,please contact us freely by E-mail or Telephone or Whatsapp or Skpye.

Q1: What is your camlock couplings standard, are they interchanable with Dixon or other brand camlock couplings?

A1: Our Camlock couplings according to AA59326 (MIL-C-27487) and EN14420-7(DIN2828)

Yes, they are interchangeable with famouse brand suplier camlock couplings, such as Dixon Valve, PT camlock couplings. For the 8", our facotry has two molds, one is matachable to Dixon 8" cam grrove, the other matches to PT's 8" cam groove. When you order the 8" camlock coupling, please confirm which type you need to make everything clear.

Q2: Does your Aluminum Camlock coupling do T6 treatment ?

A2: For AL Camlock coupling, we have two casting ways, use different casting materials:

1) Gravity casting: we use ASTM A356 material, we can do T6 treatment.

2) Die casting: we use ASTAM A380 material, this material, can not do T6 treatment.

Q3: For the Camlock arms, what material you can offer?

A3: We can offer SS316, SS304, SS301, SS202, Brass, Forged AL and PP material.

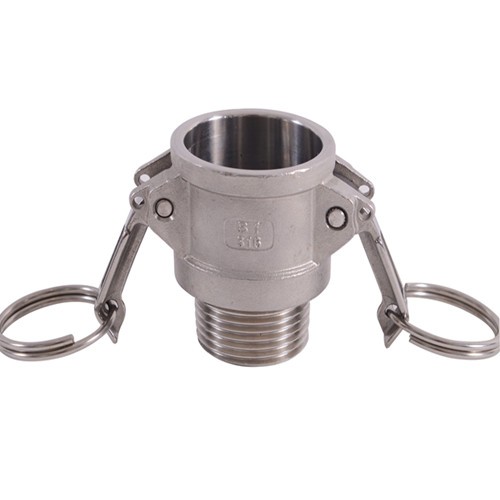

SS Camlock couplings, the standard is SS304 polished arms, SS316 is available on request.

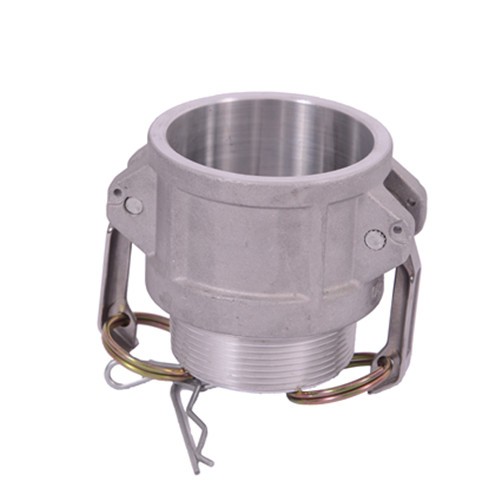

AL Camlock coupling, the standard is SS301/SS202 arms, AL golden color, 304, Brass arms are available on request.

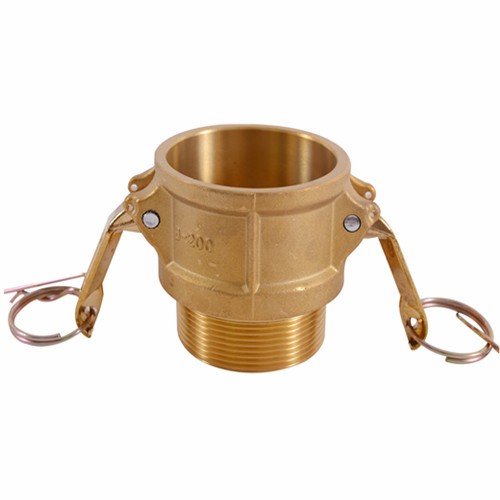

Brass Cam and groove coupling, the standard is brass arms, ss304/ss301 is available on request.

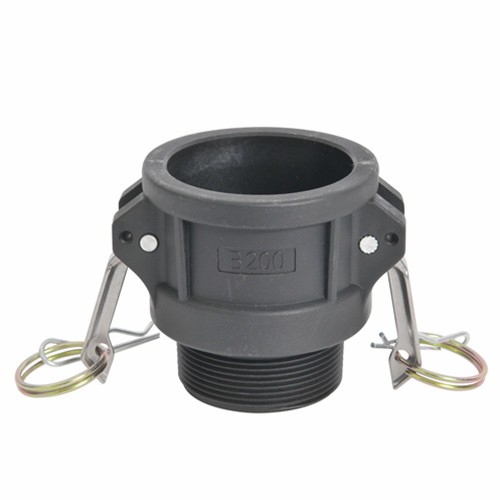

PP and NY camlock coupling, the standard is SS304/SS301 arms, Plastic arm is available on request.

Q4: Can you offer 20bar working pressrue for DN100(4") Camlock couplings?

A4: Yes, through change the gasket sealing position design, we can improve the working pressure for large size camlock couplings.

Q5: When asseamble the camlock adaptor to coupler, sometimes it is hard to press down, do you have this problem?

A5: No, as all our camlock couplings drill the two pin drill holes in one time, we had designed the fix tool for them. And we also smear lubricate oil on the arm head, which make it more smoothly into the cam groove, then get a tight closed position.

Q6: Can we change a thicker camlock gasket to improve the Camlock coupling working pressure?

A6: We are not advise to do so. We can adjust the pin drill hole posistion to change the compression rate, the standard compression rate is 1.6, we can improve to 1.9, then let the Camlock couplings afford a higher pressure in the hoses and pipeline. The best way is change the sealing position design to improve the working pressure.

Q7: Can you offer special type B?

A7: Yes, we can offer socke weld type B and Butt weld type B, they are very convenient to weld on metal flex hose and tubes.

We also can offer Autolock Type B camlock coupling.

Q8: Can ICM offer reduced Type B?

A8: Yes, we can offer reduced type B, available sizes including  3/4"X1/2", 1-1/2"x1", 2"x1-1/2", 3"x2", 3"x4" and 4"x3".

Q9：What gasket you can offer for the Camlock couplings? And what is the gasket hardness?

A9：We can offer NBR, EPDM, Silicon(MVQ), FPM/Vition, Half envelop PTFE( PTFE/EPDM, PTFE/VITION, PTFE/NBR)

NBR gasket:60±5 Shore A

EPDM gasket:70±5 Shore A

FPM/Viton gasket:70±5 Shore A

Silicon gasket:40±5 Shore A

Half Envelop PTFE gasket:80±5 Shore A

Q10: What should I do if I find quality problem in using?

A10: Firstly, we will find out the reason caused the problem and avoid the problem happen again. Then we offer replacement for any defective caused by

non-human reasons.
